Description

INSULATION PANEL.

Insulation performance for PU Panels is a high even material thickness. Air and Liquidity couldn’t penetrate and roam within the Panel Room.

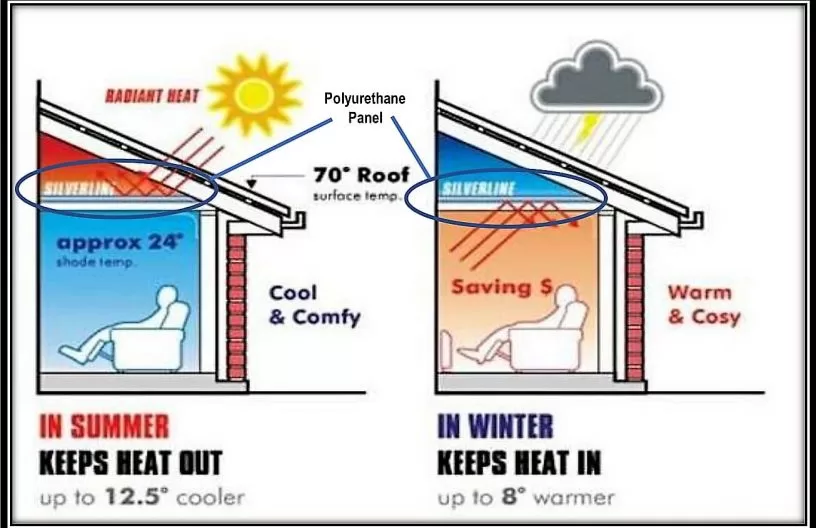

Beside that, highly reflective foils in radiant barriers and reflective insulation system reflect radiant heat away from living space and making them particularly useful in cooling climates.

PU Panels have their capability on stabilize capacity construction, structural design, especially Wall and Ceiling (Roof) applications.

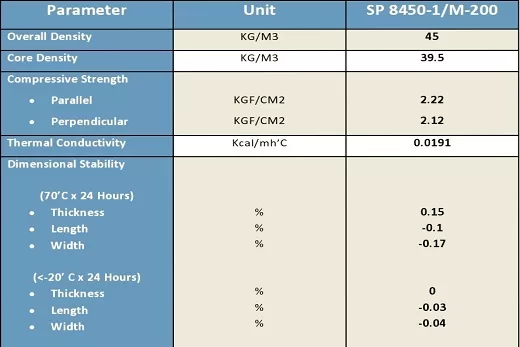

PHYSICAL PROPERTIES [PU]

Panels have been certified by SIRIM QAS International and approved by the Malaysia Fire Authorities (BOMBA).

THE VALUATION OF INSULATION PANEL:

  • Sound Proofing
  • Heat Insulation
  • Fire Protection Insulation
  • Circulation Air In Cold Room

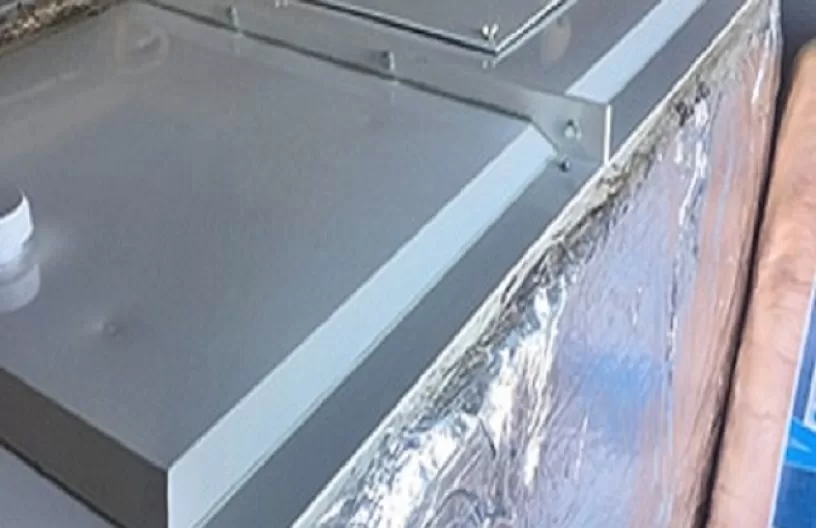

  • Water Tank Insulation

Insulated Wall & Sandwich Panels Malaysia

Thermofoam Marketing Sdn Bhd is an insulation panel supplier in Malaysia, manufacturing polyurethane (PU) insulated sandwich panels since 2010 from our factory in Rawang, Selangor. Our panels are certified by SIRIM QAS International and approved by the Malaysian Fire and Rescue Department (BOMBA), making them suitable for cold rooms, clean rooms, factories, warehouses and commercial buildings across Malaysia.

What Is an Insulated Sandwich Panel?

An insulated sandwich panel is a prefabricated building panel made of a rigid PU foam core bonded between two metal facings. The foam is injected at a uniform density and thickness, which stops air and moisture from passing through the panel and gives it a consistently high insulation value across the whole surface.

Because the panels arrive ready to install, they are faster to build with than conventional blockwork and insulation, and they can be used for both wall and ceiling or roof applications.

Benefits of Thermofoam Insulated Wall Panels

  • Thermal insulation – low thermal conductivity keeps cooled or heated spaces stable and reduces energy costs, especially in Malaysia’s tropical climate.
  • Fire protection – fire-rated panels approved by BOMBA for use in commercial and industrial buildings.
  • Sound insulation – the dense foam core reduces noise transfer between rooms.
  • Moisture and air barrier – sealed joints and non-porous facings prevent condensation and air leakage.
  • Structural strength – rigid, self-supporting panels suitable for walls, partitions and roofs.
  • Hygienic surface – smooth, easy-to-clean facings suitable for food processing and clean room environments.

Applications

Our insulated sandwich panels are used in Malaysia for:

  • Cold rooms, chillers and freezer rooms
  • Clean rooms and pharmaceutical facilities
  • Food processing plants and central kitchens
  • Warehouses, factories and prefabricated buildings
  • Insulated wall partitions and ceilings
  • Water tank and equipment insulation

We provide a variety of Poly Urethane Panel Malaysia, including wall panels, roof panels, and insulated doors. These panels are designed to enhance energy efficiency and thermal insulation in various applications.

It depends on the application. Chiller rooms typically use 50–75 mm panels, freezer rooms 100–150 mm, and general wall or roof insulation 50 mm. Contact us and we’ll recommend the right thickness for your temperature requirements.

Our Poly Urethane Panel Malaysia are renowned for their excellent insulation properties. They effectively minimize heat transfer and provide exceptional energy efficiency, making them ideal for maintaining temperature control in buildings.

Yes. Our PU panels are certified by SIRIM QAS International and approved by BOMBA for use in Malaysia.

Yes. We supply and install insulated panels throughout Malaysia, including Klang Valley, Penang, Johor and East Malaysia.

Yes. Send us your floor plan or dimensions via WhatsApp, email or the enquiry form below and we’ll provide a quotation.
